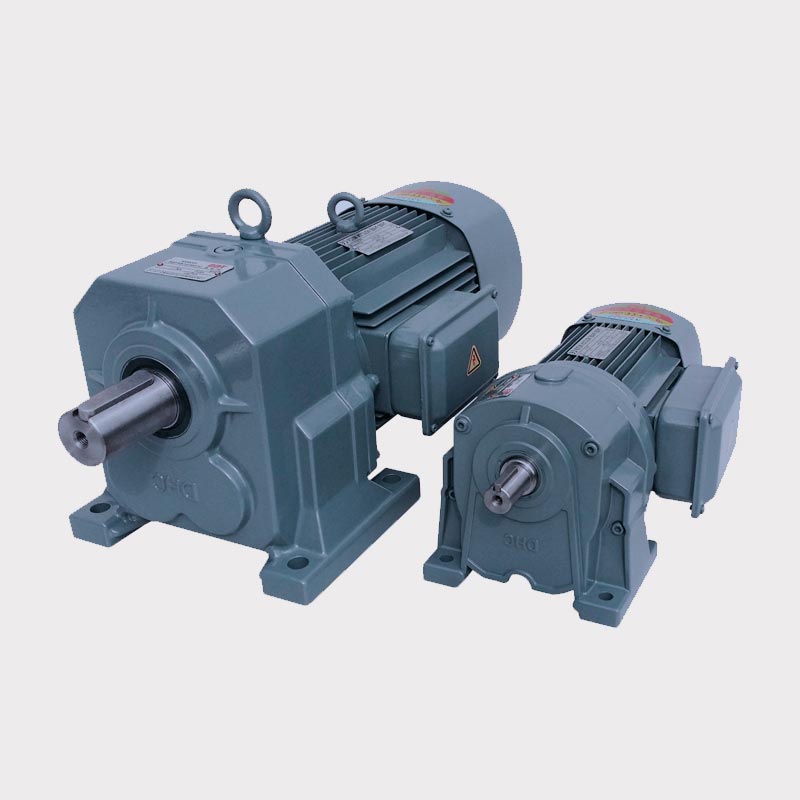

DongHai is a manufacturer and supplier specializing in supplying Elevating DHTC series reducer. This reducer for automotive park lift systems: The Elevating DHTC series reducer brake is a flat-spring electromagnetic brake. The braking rate is 182%, the quick braking time is 0.03s to 0.05s, and the quick braking lock value is less than 5cm. It adopts asbestos-free brake discs with dry friction, and the integral brake is equipped with titanium alloy cover to prevent the damping brake from malfunctioning, and it can be operated all day long at full load. The input voltage of the fast braking rectifier is 270VAC 50/60Hz, the insulation withstand voltage is 1800VAC 50Hz 1min, and the service life is 1 million times.
1. Elevating DHTC series reducerd motor adopts aluminum alloy hot high-pressure casting, all copper wires are deep-dip enameled copper wires, insulation class F, protection class IP55, working system S1 operation, moisture-proof and dust-proof fully sealed. Suitable for outdoor working environment +80 ºC to -25 ºC, not suitable for direct corrosion of the object, the motor power is more than 1.2 times the national standard value.
2. Elevating DHTC series reducer special reducer (reducer motor) adopts 20CrMnTi gear steel, by carburizing treatment, to ensure that the tooth surface hardness, high strength, and CNC precision grinding processing, to ensure that the gear hardness and precision of the technical requirements. The noise of load operation of the gear reducer is less than 52dB(A), fully sealed without oil leakage, adopting maintenance-free and zero-fault design method, with a service life of up to 30 years.
