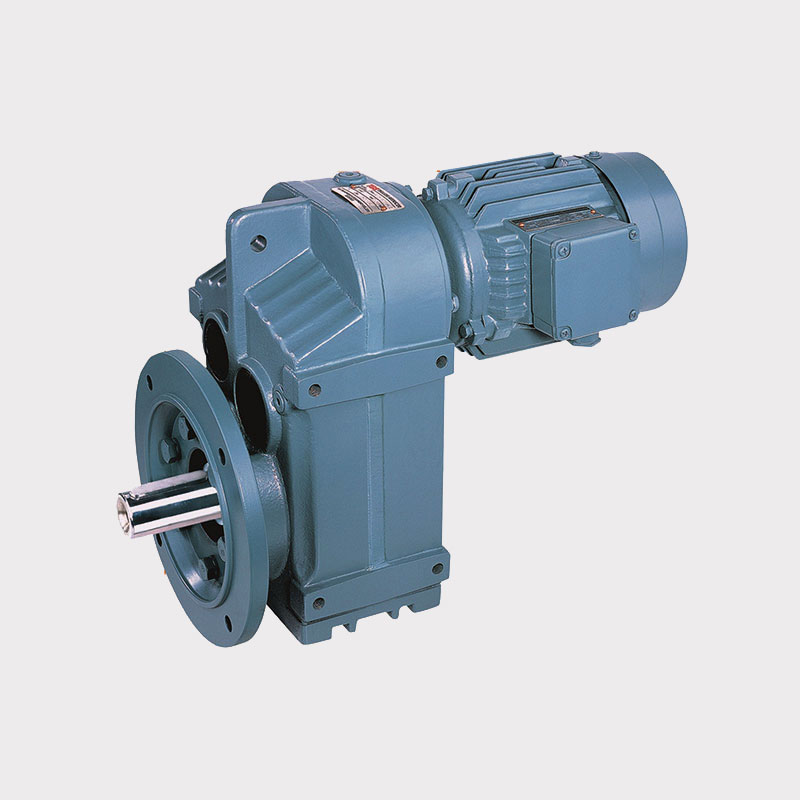

P Series Parallel Shaft Helical Variable Speed Gear Motor

• Hollow shaft on both sides possible
• Very energy efficient (efficiencies of 98% per stage)
• Power up to 200 kW
• Gears with shaved or ground profile
• Gearing with 2, 3, 4 and 5 reduction stages
• Reduction ratios between 5:1 to 100:1 , 63:1 to 355:1, 360:1 to 5600:1 and 4500:1 to 20000:1
• Cases in G200 grey cast iron for high strength and optimized with FEM analysis
• Excellent mechanical strength
• Accessories: torque arm, output flange, output shaft, shrink disk, backstop device, assembly/disassembly kit

Our advantages

High power density
High permitted overhung loads
Multi-stage gear unit for low output speeds

Manufacturing Range
• Stages: 2, 3, 4 and 5

Ratio:

1) Double Reduction: 5.0 To 100.
2) Triple Reduction: 63 To 355.
3) Quadruple Reduction: 360 To 5600.
4) Quintuple Reduction: 4500 To 20000.

Capacity: 0.12 kW To 200 kW.
Output RPM: 0.06 To 374.
Nominal Ratio: 5 To 20000.

• Mounting: foot or flange-mounting versions (B5, B14, mixers, extruders), torque bracket
• Shaft: Solid shaft, Hollow shaft

Typical Applications of P Series Parallel Shaft Helical Variable Speed Gear Motors are as follows:
• Agitator drives • Carriage drives • Shelf access equipment • Vertical conveyor
