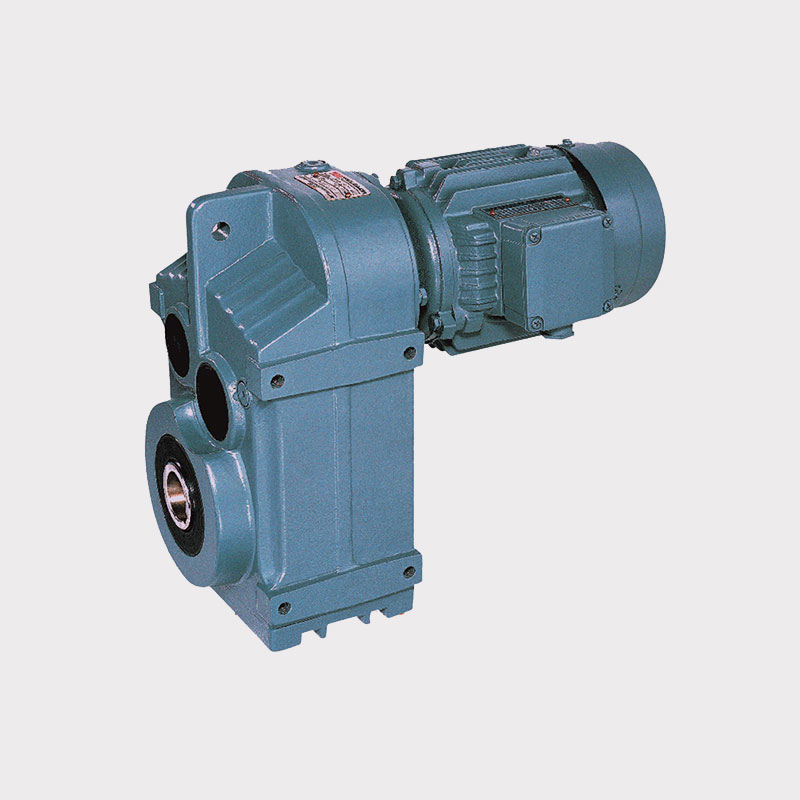

P Series Parallel Shaft Helical Standard AC Gear Motor with Brake

CHARACTERISTICS

● Adopt optimized design, module combination.
● Extra-slim parallel shaft helical gear motors are the perfect solution when space is limited, it is typically used in travelling and lifting equipment.
● P Series Parallel Shaft Helical Standard AC Gear Motor with Brake adopts advanced grinding technology and shape modification technology, which has high bearing capacity, reliable operation and low noise.
● Good sealing performance, suitable for a wide range of working conditions.
● High transmission efficiency and energy saving.
● Cost-effective and easy to maintain.

Product Form

● Transmission Stage: 2 stage or 3 stage.
● Assembly Form: Foot mounted, Flange mounted, B14 small flange mounted, torque arm mounted.
● Right Angle Output: Solid shaft, Hollow shaft ( flat key, shrink disk, involute spline), Splined solid shaft

Technical Data

● Size: PA37~PA157
● Technical Data(N·m): 2.8 ~ 19530 N.m
● Gear Ratio: 3.77 ~ 22323 （imax: 22323）
● Input Power(kW): 0.12~200
