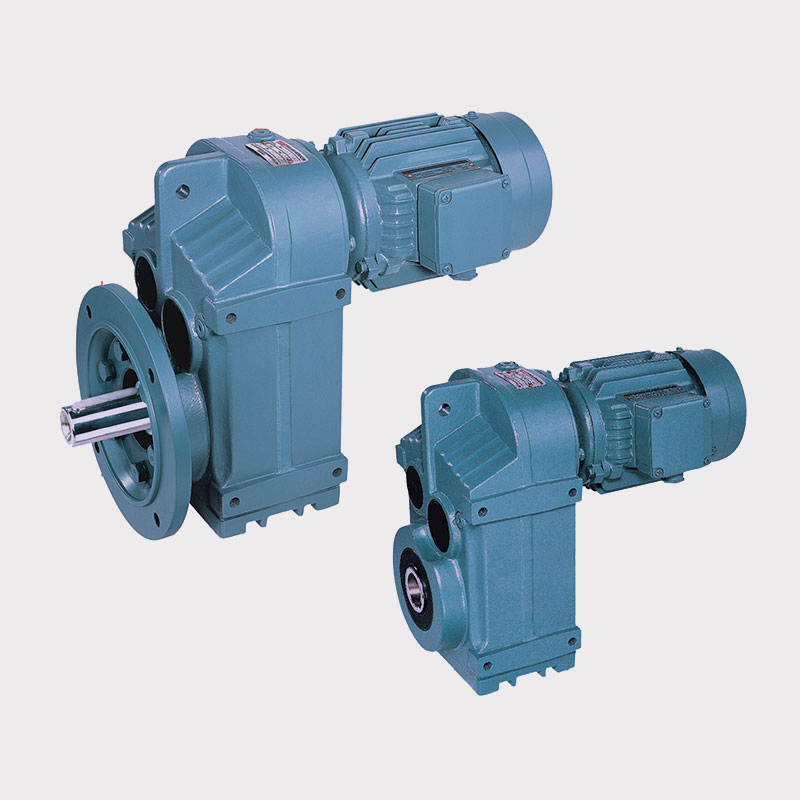

P Series Parallel Shaft Helical Standard AC Gear Motor is composed with two-stage or three-stage gears. Input
shaft and output shaft is parallel.
Mounting position: footed mounting, flange mounting, shaft mounting etc.
output speed: 0.06 ~ 374 rpm
rated output torque: 2.8 ~ 19530 Nm
motor power: 0.12 ~ 200 KW
Application: Crane traveling equipments, transportation, metallurgy,mining,
chemical industry, water conservancy and hydropower, construction and light
industry,etc.
| Ratio | 3.77-22323 |
| Input power | 0.12-200KW |
| Output torque | 2.8 ~ 19530N.m |
| Output speed | 0.06 ~ 374rpm |
| Mounting type | Foot mounted, foot mounted with solid shaft, output flange mounted, hollow shaft mounted, B5 flange mounted with hollow shaft, foot mounted with hollow shaft, B14 flange mounted with hollow shaft, foot mounted with splined hole, foot mounted with shrink disk, hollow shaft mounted with anti-torque arm. |
| Input Method | Flange input(AM), shaft input(AD), inline AC motor input, or AQA servo motor |
| Brake Release | HF-manual release(lock in the brake release position), HR-manual release(autom-atic braking position) |
| Thermistor |
TF(Thermistor protection PTC thermisto) TH(Thermistor protection Bimetal swotch) |
| Mounting Position | M1, M2, M3, M4, M5, M6 |
| Type | P37-P157 |
| Output shaft dis. | 25mm, 30mm, 35mm, 40mm, 50mm, 60mm, 70mm, 90mm, 110mm, 120mm |
| Housing material | HT200 high-strength cast iron from P37, 47, 57, 67, 77, 87 |
| Housing material |
HT250 High strength cast iron from P97 107, 137, 147, 157, 167, 187 |
| Heat treatment technology | carbonitriding and hardening treatment |
| Efficiency | 92%-94% |
| Lubricant | VG220 |
| Protection Class | IP55, F class |
Input shaft and output shaft are parallel, easy to install and maintain.
Integrated design of motor and reducer, compact structure, occupies little space.
Adopting high quality alloy steel material to manufacture gears, after carburizing quenching and grinding treatment, the tooth surface has high hardness and good abrasion resistance.
Wide range of output torque to meet different load requirements.
The transmission efficiency of the speed reducer is high, up to more than 95%.
The motor itself is also highly efficient, the overall operating efficiency is high, saving energy.
Helical gear meshing is smooth, low noise, low vibration.
It is suitable for occasions that require smooth operation, such as crane traveling equipment, transportation machinery, etc.
Key parts such as gears and bearings are made of high-quality materials, precision machined and heat-treated for long life.
The motors and reducers are reasonably designed to reduce the wear and tear of components and failures.
