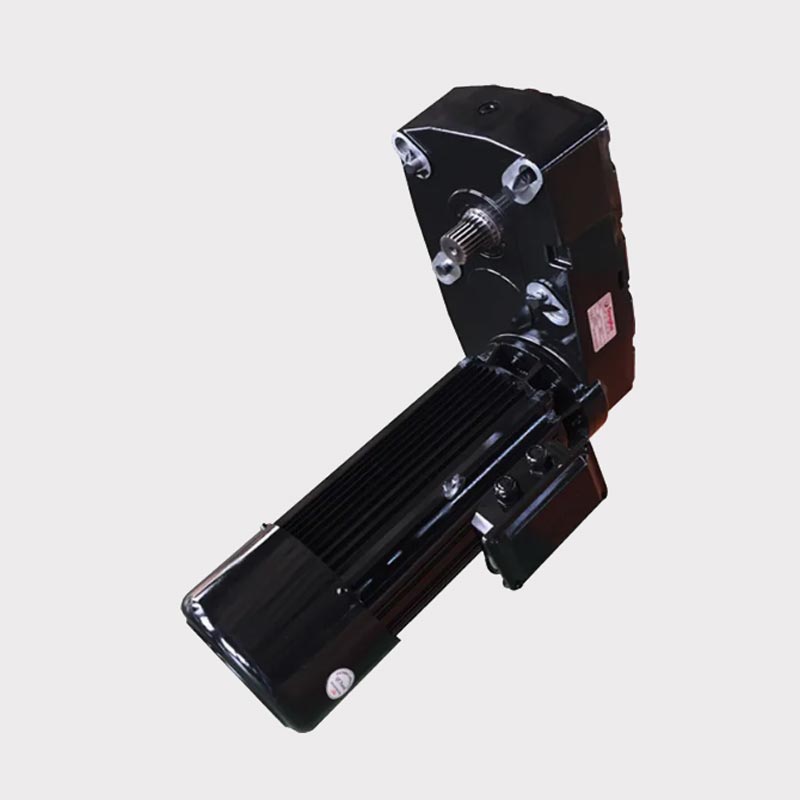

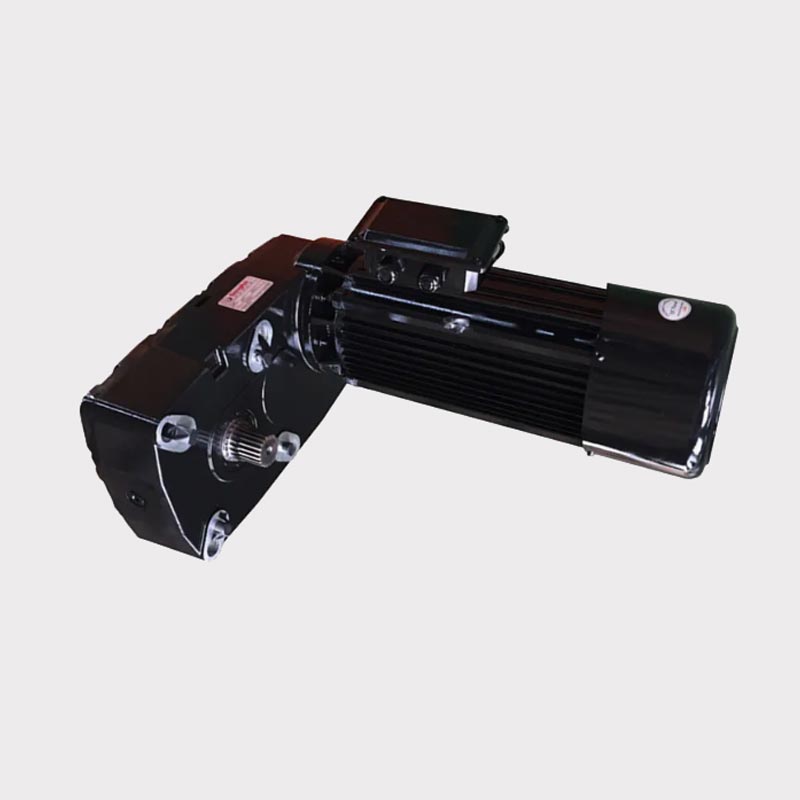

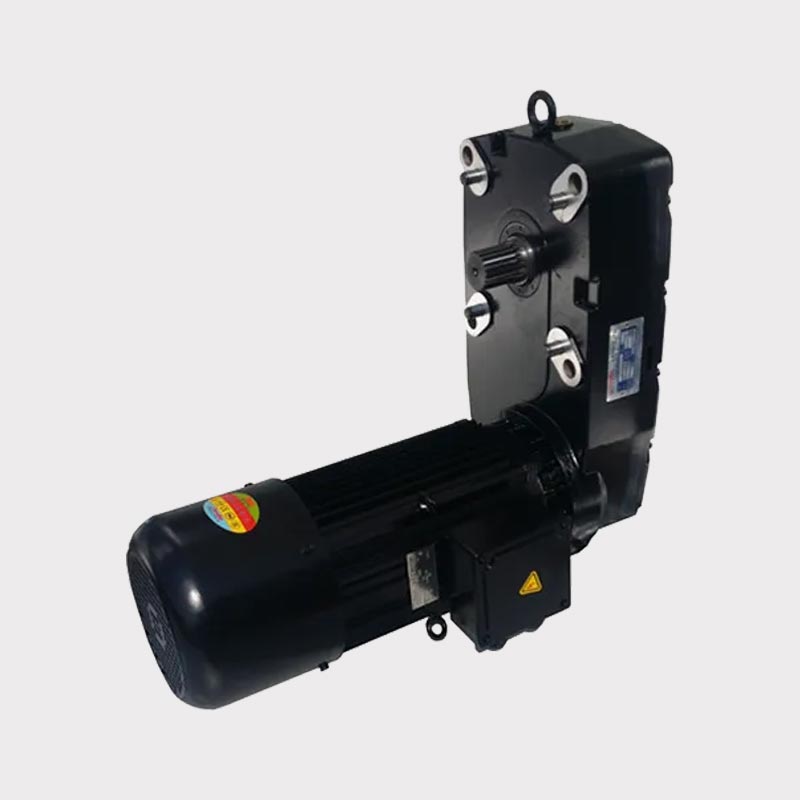

DongHai is a manufacturer and supplier specializing in supplying DQM Series Gear Motor For Hoist Lifting. This gear motors are specially designed for lifting and hoisting equipment, combining the advantages of helical gears and worm gears, featuring compact structure, high transmission efficiency and smooth operation. This series gear motor is suitable for various lifting and hoisting equipments, such as cranes, electric hoists, elevators, etc. It can provide stable and reliable power output and precise speed control.
1. This Gear Motor adopts helical gear and worm gear transmission structure,
which realizes efficient and smooth power transmission, reduces energy loss
and improves the working efficiency of the equipment.
2. This Gear Motor has an integrated design of motor and reducer, which
has a compact structure, occupies little space, and is easy to be installed
and arranged in lifting and hoisting equipment.
3. DQM Series Gear Motor
For Hoist Lifting realizes precise speed and position control through advanced
control system to meet the lifting and hoisting requirements under different
working conditions.
4. This Gear Motor selects high quality materials and
advanced manufacturing process to ensure long service life and stable
performance of the gear motor. At the same time, strict quality inspection and
testing to ensure the reliability and safety of the product.
5. DQM
Series Gear Motor For Hoist Lifting is designed with a structure that is easy
to maintain and overhaul, such as removable housing, easy-to-replace parts,
etc., which reduces maintenance costs and downtime.
| Lifting Capacity | Lifting Speed | Drum Diameter | Motor Power | Protection Class | Frequency |
|
Up to 3.2 ton (dual speed) |
0.66/4.0;0.8/5.0;1.0/6.3;1.3/8.0 m/min at reeving 4/1 |
140mm |
0.37/2.5;0.45/3.2;0.6/4.0 Kw (12/2 Poles) |
IP55 | 50HZ |
|
Up to 6.8 ton (dual speed) |
0.66/4.0;0.8/5.0;1.0/6.3;1.3/8.0 m/min at reeving 4/1 |
170mm |
0.8/4.9;1.0/6.1;1.3/7.7;1.6/9.8 Kw (12/2 Poles) |
IP55 | 50HZ |
|
Up to 12.5 ton (dual speed) |
0.66/4.0;0.8/5.0;1.0/6.3;1.3/8.0 m/min at reeving 4/1 |
266mm |
1.2/7.6;1.5/9.5;2.0/12.5 Kw (12/2 Poles) |
IP55 | 50HZ |
|
Up to 20 ton (dual speed) |
0.66/4.0;0.8/5.0;1.0/6.3;1.3/8.0 m/min at reeving 4/1 |
295mm |
2.0/12.5;2.6/16.0 Kw (12/2 Poles) |
IP55 | 50HZ |
|
Up to 25 ton (dual speed) |
0.53/3.4;0.65/4.23;0.83/5.35;1.03/6.7 m/min at reeving 4/1 |
325mm |
2.0/12.5;2.6/16.0 Kw (12/2 Poles) |
IP55 | 50HZ |
|
Up to 40 ton (dual speed) |
0.6/2.6;0.8/3.3;1.0/4.2 m/min at reeving 4/1 |
405mm |
5/20 Kw (8/2 Poles) |
IP55 | 50HZ |
| Lifting Capacity | Lifting Speed | Drum Diameter | Motor Power | Protection Class | Frequency |
|
Up to 3.2 ton (dual speed) |
1.2/4.8;1.6/6.0;1.92/7.6;2.4/9.6 m/min at reeving 4/1 |
140mm |
0.72/3.0;0.96/3.6;1.2/4.8 Kw (12/2 Poles) |
IP55 | 60HZ |
|
Up to 6.8 ton (dual speed) |
1.2/4.8;1.5/6.0;1.9/7.6;2.4/9.6 m/min at reeving 4/1 |
170mm |
1.4/5.9;1.8/7.3;2.3/9.1;2.9/11.5 Kw (12/2 Poles) |
IP55 | 60HZ |
|
Up to 12.5 ton (dual speed) |
1.2/4.8;1.5/6.0;1.9/7.6;2.4/9.6 m/min at reeving 4/1 |
266mm |
2.3/9.1;2.9/11.5;3.7/15.0 Kw (12/2 Poles) |
IP55 | 60HZ |
|
Up to 20 ton (dual speed) |
1.2/4.8;1.5/6.0;1.9/7.6;2.4/9.6 m/min at reeving 4/1 |
295mm |
3.7/15;4.8/19.2 Kw (12/2 Poles) |
IP55 | 60HZ |
|
Up to 25 ton (dual speed) |
1.02/4.1;1.3/5.1;1.6/6.4;2.0/8.1 m/min at reeving 4/1 |
325mm |
4/15;4.8/19.2 Kw (12/2 Poles) |
IP55 | 60HZ |
|
Up to 40 ton (dual speed) |
0.8/3.2;1.0/4.0;1.3/5.1 m/min at reeving 4/1 |
405mm |
6/24.2 Kw (8/2 Poles) |
IP55 | 60HZ |

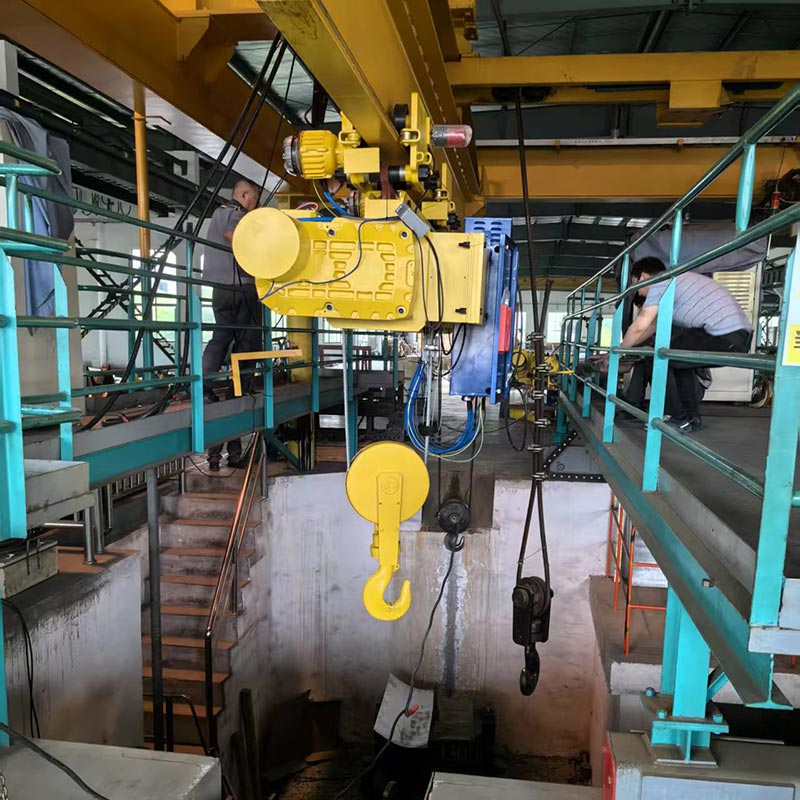

The DQM Series Gear Motor For Hoist Lifting is used in fully intelligent control-operated crane systems.
1. The hoisting mechanism consists of a reinforced aluminum alloy housing, motor, integrated thermal protection device and brake.
2. The gearbox housing is made of low-pressure cast reinforced aluminum alloy to ensure aluminum strength without deformation and light weight.
3. The splined output shaft (European standard) and hardened helical gears are made of high quality 20CrMnTi gear steel.
4. Carburizing treatment ensures the surface strength of the gears' hardened teeth.
5. The gears are then precision ground by CNC to ensure that the hardness and accuracy meet the technical requirements.
6. Totally enclosed combination hoist drives have a mechanical transmission efficiency of up to 98% and an operating noise of less than 60 dB (A), making them suitable for outdoor working environments.
7. The low-noise motor housing is a hot-drawn aluminum alloy with a heat dissipation and sound absorption system.
8. Euro rotor slant slot stator precision wound with copper wires, deeply dipped in lacquer.
9. Insulation classes F and H, protection class IP55, operating system S1 operation for outdoor working environments from +80 ºC to -25 ºC, not suitable for direct corrosive objects.
10. Variable frequency up to 110 Hz, starting frequency 1 Hz.
