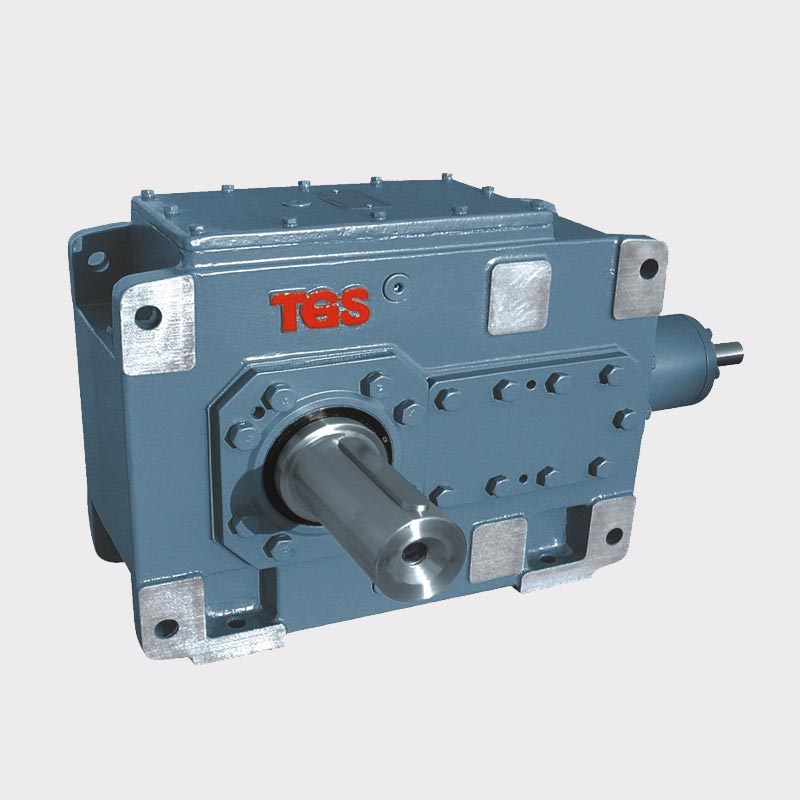

In today's increasingly complex industrial automation and heavy-duty transmission, choosing a reliable and efficient reducer is not only related to the operating efficiency of the entire production line, but also directly affects the stability and maintenance cost of the equipment. So why is QYJ Series Helical Bevel Gear Box favored by global buyers? Let's take a deeper look at this core transmission component that combines strength and flexibility.
The QYJ series adopts a spiral bevel gear transmission design. Compared with the traditional spur gear structure, the arc tooth surface has a larger contact area and can withstand higher torque and impact loads, greatly improving the service life and operating stability of the whole machine. The whole machine is small in size, light in weight, and compact in structure. It is easy to install inside equipment with limited space. It is also suitable for the integrated design of various complete sets of equipment, greatly reducing space occupancy and assembly time.
1. High transmission efficiency: The high-precision meshing of spiral bevel gears significantly reduces the loss in the energy transmission process, which can effectively reduce the energy consumption of equipment operation.
2. Multi-angle installation adaptation: Supports horizontal, vertical and multi-angle installation, can flexibly adapt to different industrial application scenarios, and meet the transmission layout requirements in complex systems.
3. Upgraded materials, can withstand heavy loads: Key components are made of high-strength alloy steel, and after high-precision processing and heat treatment processes, they have excellent wear resistance and impact resistance, and can handle high-load operation without pressure.
4. More advanced sealing technology: The high-performance sealing system is used to prevent lubricating oil leakage and external dust and water vapor intrusion, extend the equipment maintenance cycle, and significantly improve the service life.
The QYJ series is divided into QYJH parallel shaft type and QYJB 90° right-angle shaft type according to the installation axis direction, which can provide a combination of different transmission ratios from one to four levels, covering a wider output range. The technical parameters are as follows:
· Reduction ratio range: 1.25 \~ 450
· Rated output torque: 3 Nm \~ 900 kNm
· Supported motor power: 1.1 \~ 4000 kW
· Installation mode: horizontal / vertical / vertical multiple options
QYJ Series Helical Bevel Gear Box is widely used in mining machinery, conveying equipment, mixing systems, steel metallurgy, port machinery, building materials and environmental protection equipment. Whether it is a heavy industrial scene with extremely high requirements for equipment performance or an automation system with high requirements for layout flexibility, QYJ Series Helical Bevel Gear Box can provide users with stable, sustainable and low-maintenance power solutions.
If you are an industrial equipment manufacturer, a complete system integrator, or the head of a plant maintenance team, and are looking for a transmission solution with high torque output, flexible installation, long service life, and almost no frequent maintenance, then QYJ Series Helical Bevel Gear Box deserves to be considered. As global manufacturing is currently moving towards intelligence and greening, choosing a high-performance core transmission device is not only a means of controlling costs, but also an important step in enhancing the core competitiveness of products.
Zhejiang Donghai Reducer Co., Ltd. was established in 1991, after more than 3 decades of development. It has been a leading enterprise with scientific and technological dedication to the research and development, manufacturing, and sales of transmission equipment. The main products include a helical gearbox, a helical gear motor, and a non-standard gearbox. Explore our full range of products on our website at https://www.dhgearmotor.com/. For any inquiries, please reach out to us at ib@dhctgs.com.
