Zhejiang Donghai Reducer Co., Ltd. has developed transmission solutions around the HD Series Bevel Geared Unit, helping industries understand how different mounting structures improve equipment flexibility, installation efficiency, and operational reliability.
As industrial automation continues to expand, machinery designers are paying more attention to the connection between drive components and overall equipment structures. A gearbox is no longer selected only by torque and speed requirements. Its mounting method directly influences machine layout, maintenance convenience, space utilization, and long-term performance.

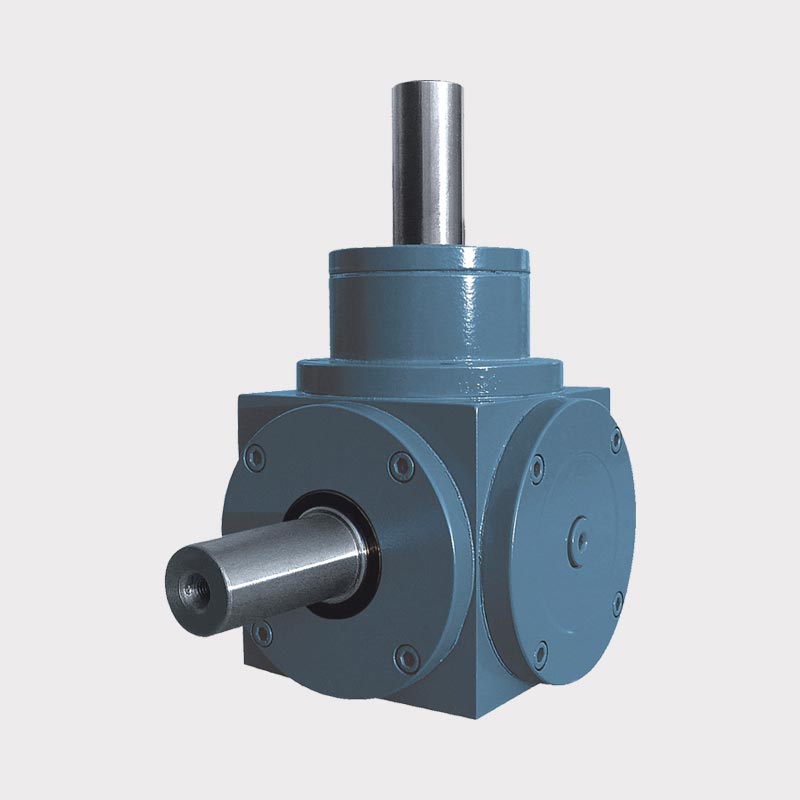

The HD Series Bevel Geared Unit is designed with multiple mounting configurations to adapt to different mechanical applications. Foot mounting, flange mounting, shaft mounting, and hollow shaft mounting each provide unique advantages depending on the equipment design.
For industries such as material handling, packaging machinery, automated production lines, and intelligent equipment, choosing the appropriate mounting style can simplify installation and improve system integration.
Different machines have different structural requirements. Some need a stable base connection, while others require compact installation around a driven shaft. The right mounting option can solve common challenges, including:
A well-designed gearbox mounting structure helps reduce mechanical stress and supports smoother operation.
The HD Series Bevel Geared Unit provides several mounting solutions that match different industrial layouts. Understanding the characteristics of each option allows engineers and equipment designers to select a more suitable configuration.
| Mounting Type | Main Feature | Suitable Applications | Key Advantage |
|---|---|---|---|
| Foot Mounted | Gearbox fixed through base feet | Conveyors, processing equipment, general machinery | Strong stability and easy positioning |
| Flange Mounted | Direct connection through flange interface | Compact machines and integrated systems | Saves installation space |
| Shaft Mounted | Gearbox installed directly onto machine shaft | Conveyor drives and rotating equipment | Simplifies connection structure |
| Hollow Shaft Mounted | Driven shaft inserted directly into gearbox | Automated systems and compact mechanisms | Reduces additional coupling components |
Foot mounting remains one of the most traditional and widely used gearbox installation methods. In this structure, the gearbox is secured to the equipment frame through mounting feet.
This design provides excellent mechanical support and is often selected for machines requiring stable operation over extended periods. Equipment such as conveyors, mixers, and industrial processing systems frequently benefit from this arrangement.
The main advantage of foot mounting is installation simplicity. Maintenance teams can easily inspect and replace components because the gearbox position is clearly defined within the machine structure.
As industrial equipment becomes smaller and more integrated, space-saving solutions have become increasingly important. Flange mounting allows the gearbox to connect directly with other machine components, reducing unnecessary structural space.
This configuration is commonly found in automated equipment where precise positioning and compact design are important. It helps engineers create cleaner machine layouts while maintaining reliable transmission performance.
For intelligent manufacturing systems with limited installation areas, flange mounting offers greater flexibility during equipment design.
Shaft-mounted and hollow shaft-mounted designs are especially useful when direct connection between the gearbox and driven equipment is preferred.
A shaft-mounted system can reduce the number of additional connection parts, making the overall structure easier to assemble. Hollow shaft configurations go a step further by allowing the driven shaft to pass directly through the gearbox, helping reduce coupling requirements and improve space efficiency.
The HD Series Bevel Geared Unit supports these practical installation approaches, allowing different industries to adapt transmission systems according to their mechanical requirements.
Choosing a mounting configuration depends on several factors rather than a single performance requirement. Equipment designers usually consider:
Compact machines may benefit from flange or hollow shaft structures, while larger equipment may require the stronger support provided by foot mounting.
If a machine needs direct integration with a rotating shaft, shaft or hollow shaft options can reduce the complexity of the transmission system.
A mounting structure should not only support operation but also allow convenient inspection and servicing throughout the equipment lifecycle.
Factors such as vibration, load conditions, and working frequency can influence the ideal gearbox installation method.
With the growth of automation and smart manufacturing, transmission components are evolving toward higher precision, better adaptability, and easier integration.
Zhejiang Donghai Reducer Co., Ltd., established in 1991, has focused on research, development, production, and application of transmission equipment for more than three decades. The company uses automated processing equipment and intelligent inspection instruments to improve gear accuracy and product consistency.
Its product range includes helical gearboxes, helical gear motors, and customized gearbox solutions designed to meet the requirements of modern mechanical systems. These technologies support the increasing demand for reliable transmission components in advanced industrial equipment.
The future of industrial machinery will continue moving toward modular structures and customized solutions. Gearboxes that provide multiple mounting options can help equipment designers respond faster to changing production requirements.
Rather than using a single installation method for every application, modern transmission systems benefit from adaptable designs that balance performance, space efficiency, and maintenance needs.
Understanding the differences between foot, flange, shaft, and hollow shaft configurations helps users make more informed decisions when planning mechanical systems. With its long-term experience in transmission technology, Zhejiang Donghai Reducer Co., Ltd. continues to develop products such as the HD Series Bevel Geared Unit to support diverse industrial applications and evolving equipment designs.
